Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line

Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line

    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
    • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line
  • Fully-automatic 3-25L Bag-in-Box Filling Machine BIB Packaging Line

    Product Details:

    Place of Origin: China
    Brand Name: Calmus
    Certification: CE
    Model Number: BIBFPL500-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD150000-200000/Set
    Packaging Details: Packed with Plywood
    Delivery Time: Within 90 days after receipt of prepayment
    Payment Terms: By T/T
    Supply Ability: 10 sets per quarter
    Contact Now
    Detailed Product Description
    Processing: Filling And Packaging Construction Material: Grade 304 Stainless Steel
    Applicable Bags: WEB Type Bags, Spout-prepared, 3-25L Filling & Packaging Capacity: 400BPH For 10L
    Volume Control: Electromagnetic Flow Meter System CIP Circuit Included: Yes
    Carton Sealing Material: Hot Melt Glue Quality Standard: Absolutely EU Standard
    Easy To Install: Yes Warranty Period: 1 Year And Aftersales Sevice Always Available

    Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry. Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry. We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other supporting equipment. For more information, please visit www.CalmusMachinery.com


    IMPORTANT:

    Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

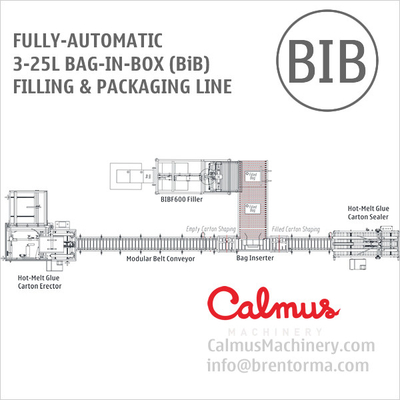

    Fully-automatic Bag-in-Box (BIB) Filling and Packaging Line

    The Fully-automatic Line includes:
    1) The Fully-automatic Bag in Box Filling Machine
    2) Hot Melt Glue Box Erector
    3) Bag Inserter
    4) Hot Glue Box Sealer
    5) Conveying Systems

    About Fully-automatic Bag in Box Filling Machine
    The Fully-automatic Bag-in-Box Filling Machine is specially for filling spout-prepared bags with a wide range of liquids like drinking water, juice, milk, edible oil and beverage. It features fully-automatic by employing PLC and touch screen controlling system. The whole process of cutting apart from the fed continuous bags, delivering to heads for decapping, vacuumization (optional), nitrogen injection (optional), filling, capping and transiting to the conveyor can be completed automatically, no human operation required.

    Features:
    1. Fully-automatic (automatically and continuously feeding rolled bags, filling, capping and conveying).
    2. Easy to use. The touch-screen control system makes operation easy.
    3. Self-test and protecting function.
    4. Electromagnetic flow meter system improves filling precision and truly achieves the quantitative filling.
    5. Grade 304 stainless steel body and 316L stainless fluid-contact parts.
    6. Filling a different capacity bag acceptable only by changing the setting.
    7. Perfect spout clampping system ensures realiable running of the machine and meanwhile no damage to the bag spout.
    8. Options of vacuumization and nitrogen injection available for specific products use.

    Specifications:
    Applicable bags: pre-cut continuous module or WEB type bags, spout-prepared, 3-25 litres. (Spout is called "gland" or "flange" too.)
    Filling capacity:
    500 bags/hour for 5 litres
    400 bags/hour for 10 litres
    300 bags/hour for 20 litres
    Power: 3.0KW
    Compressed air: 6-8bar, 1.5m3/h.


    Procedures:

    1. Automatically feed bags.

    Bags Feeding of Bag-in-Box Filling Machine



    2. Automatically cut apart, decap, fill and cap bags.
    Box-in-Box Filling



    3. Automatically ecrect cartons and seal bottoms with hot melt glue.

    Box Erecting of Bag-in-Box Packaging Line


    4. Automatically drop filled bags in cartons.

    Box Packaging of Bag-in-Box Packaging Line


    5. Automatically seal the carton tops with hot melt glue.

    Box Sealing of Bag-in-Box Packaging Line


    Fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported.


    Absolutely EU quality standard, but less than half of EU price.


    Contact us today for a competitive price.


    ---
    Contact: Mr. Gavin CHEUNG
    Email: info(a)brentorma.com
    Tel: +86-755-28033527
    ---
