|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Packed with Plywood|
|Delivery Time:||Within 45 days after receipt of prepayment|
|Supply Ability:||20 sets per quarter|
|Application:||5 Gallon Bottles||Max Palletizing Capacity:||1500BPH|
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include commercial filtration systems, bottle filling machines, bag in box fillers and packaging lines, bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry. We have helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other assistant equipment. For more information, please visit www.CalmusMachinery.com
Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

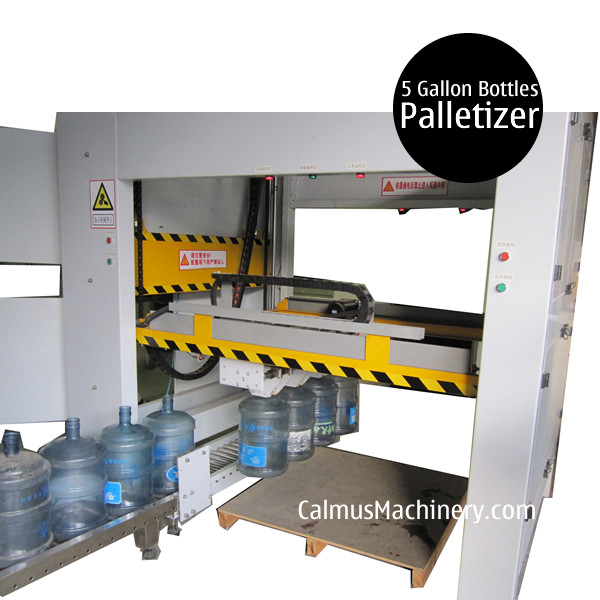

Semi-automatic 5 Gallon Bottle Palletizing Machine
19 Litre / 20 Litre Bottle Palletizer
1. Bottles feed on a slideway by gravity with low power comsumption. Sensor detecting system can adjust the palletizing speed to match the water bottling speed.
2. Bottle lifting system uses a unique neck clamping deisng by pneumatic drive, reliable and no damage to bottle necks and neck wraps.
3. Ability to stack 1-3 layers and the number of layers can be set on the touch screen.
4. Acurate location and stale lifting.
5. Mitsubishi PLC and WEIVIEW touch screen.
6. A photoelectricity detection and protection system is employed on the lifting. In case of an object or a person there, the machine will stop and alarms.
Palletizing capacity: max. 1500 bottles/hour
Power: 3.0KW (excluding air compressor)
Air pressure: 0.5-0.7MPa
Air consumption: 0.15m3/min (at 1500 bottles/hour)
Pallet size: 1100×1100×110mm ( or customized)
Applicable bottle: 5 gallon / 19 litre / 20 litre
Number of clamping heads: 4
Palletize pattern: 4 x 4 bottles per layer. 1-3 layers adjustable.
This machine requires human to feed bottom and shelf pallets manually. We also have a fully-automatic 5 gallon bottle palletizer which feed all pallets automatically.
