5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine

5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine

    • 5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine
    • 5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine
    • 5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine
    • 5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine
  • 5 Gallon Tritan Bottle Blowing 20L BPA Free Bottle Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: Calmus
    Certification: CE
    Model Number: BCP85

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD80000-140000
    Packaging Details: Packed with Plywood
    Delivery Time: 70 Days
    Payment Terms: T/T, L/C
    Supply Ability: 8 Sets Per Quarter
    Contact Now
    Detailed Product Description
    Type: Tritan Granules To Bottles Bottle Type: Tritan Copolyester
    Bottle Size: 2-5 Gallon Production Capacity: 60BPH For 5 Gallon
    Automatic: Yes

    Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include commercial filtration systems, bottle filling machines, bag in box fillers and packaging lines, bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry. We have helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other assistant equipment. For more information, please visit www.CalmusMachinery.com



    IMPORTANT:
    Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

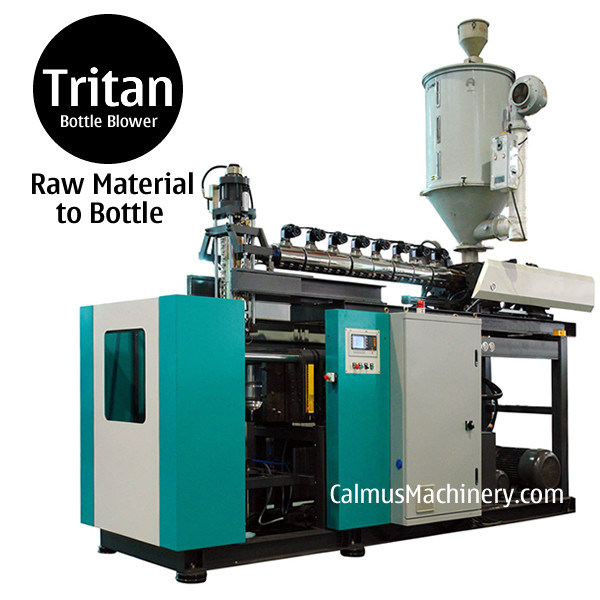

    5 Gallon Tritan Bottle Blowing | 20L BPA-Free Bottle Making Machine



    Type: Raw Material to Bottle (no need of Preforms)
    Feed material: Tritan Copolyester raw material (in granules)
    Bottle volume: 5 or 20 litres
    Production capacity: 60 pcs/hour (5 gallons)



    1) Plasticizing System
    Screw Diameter (mm): 85
    Ratio of Screw Length/Diameter (L/D): 28
    Plasticizing Rate (kg/hr): 80
    Injection Stroke (mm): 360
    Screw Speed Range (rph): 10-56



    2) Clamping System
    Clamping Force (kN): 190
    Clamping Stroke (mm): 350
    Mould Thickness Range (mm): 370-410
    Max Opening between Platens (mm): 720



    3) Power Consumption
    General Power (kW): 84
    Hydraulic Motor (kW): 37
    Electrical Heating Power (kW): 44
    Average Electricals Power Rating (kW): 58



    4) Air Source Connection
    Required air source pressure: min. 6-10 bar; Air consumption: 0.4M3/min..



    5) Water Source Connection
    Required water pressure: min. 2-3 bar; Water consumption: 6M3/min.



    6) Control System
    100-point wall thickness control, 6" colour display.



    7) Machine Dimensions
    4,985(L) x 1,465(W) x 2,765(H) mm



    8) Machine Weight
    6 tons (not including hydraulic oil and mould)



    9) Production Capacity
    >= 60 bottles/hour (based on qualification rate of 98%)



    ---

    What do you need to prepare for making the BPA free Bottles?
    Tritan Copolyester resin granules in bags. Simple and the Tritan resin is easy to buy locally.



    Process:
    1. Load Tritan resin in the Hopper of the machine.

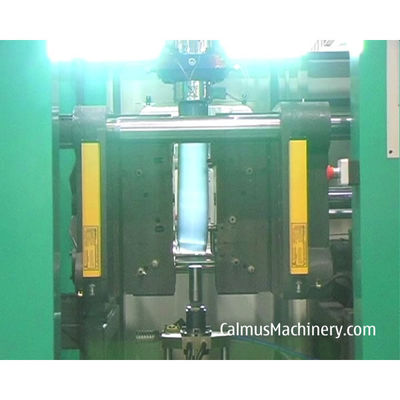

    2. Melt Tritan resin coming into the mould.

    5 Gallon Tritan Bottle Blowing Machine - Melt Copolyester Resin

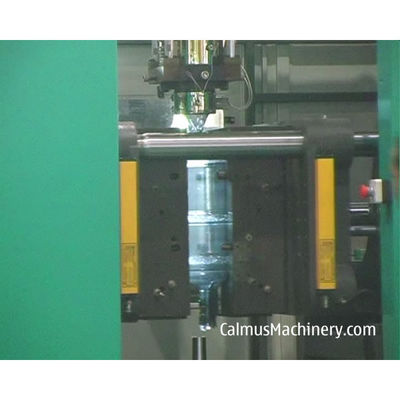

    3. Melt Tritan resin is shaped into a bottle in the mould.

    5 Gallon Tritan Bottle Blowing Machine - Shaped Copolyester Bottle


    4. The mould is open and take out the bottle.

    5 Gallon Tritan Bottle Blowing Machine - Take Out The Copolyester Bottle



    Very simple. Easy to buy material and easy to operatre.

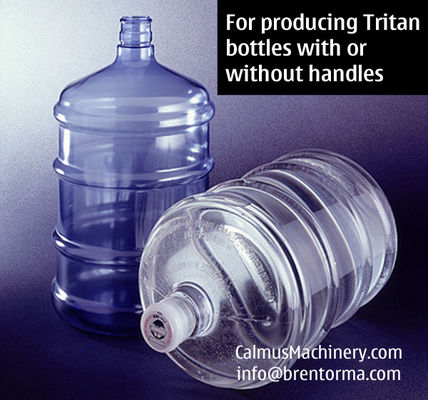

    What kind of bottles does the machine can make?

    2-5 gallon bottles with or without handle.

    Tritan Bottle Blowing Machine - Copolyester Bottle Types
