Pouch Sorter and Wrap-Around Case Packer | Carton Packaging Machine

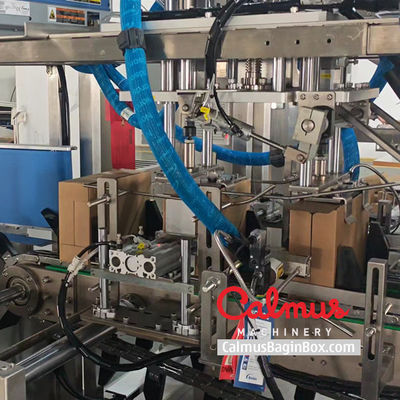

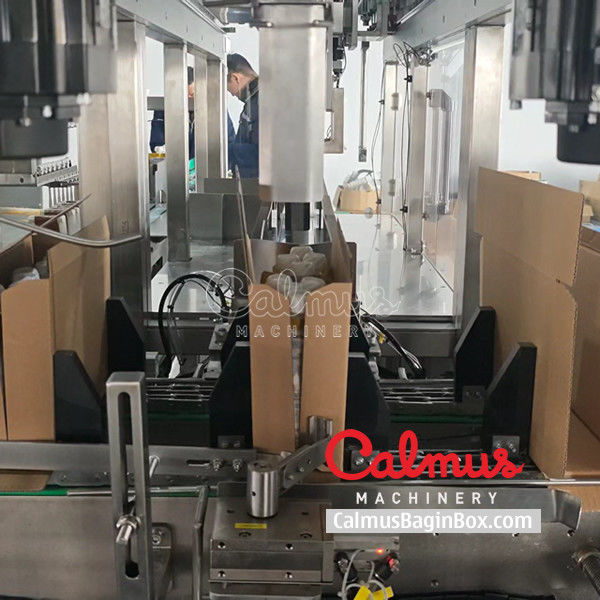

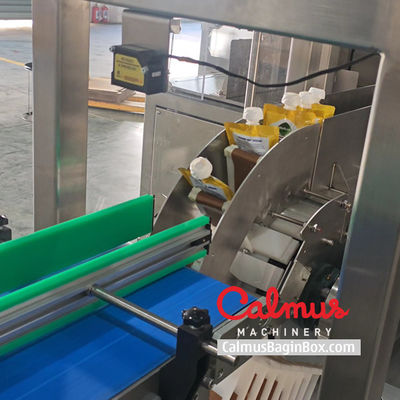

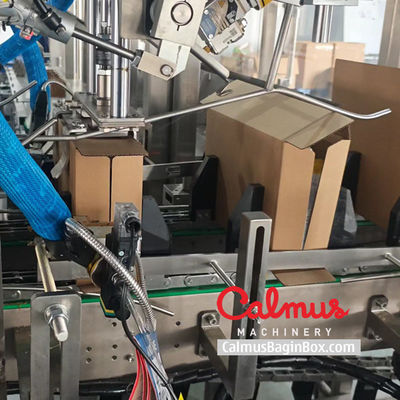

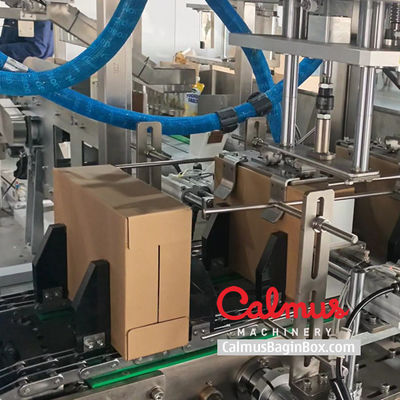

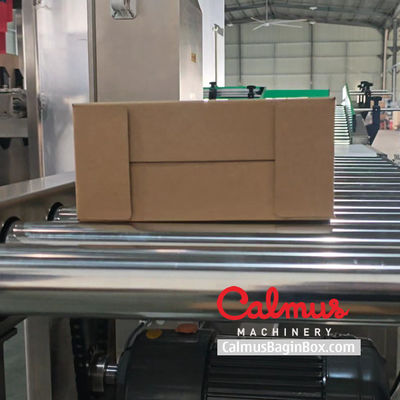

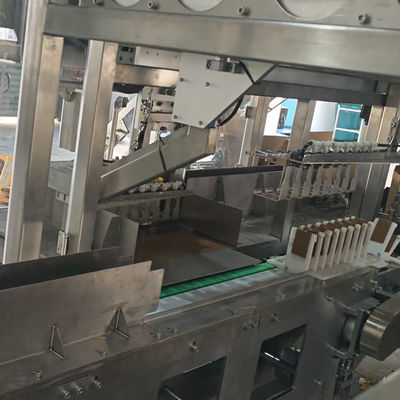

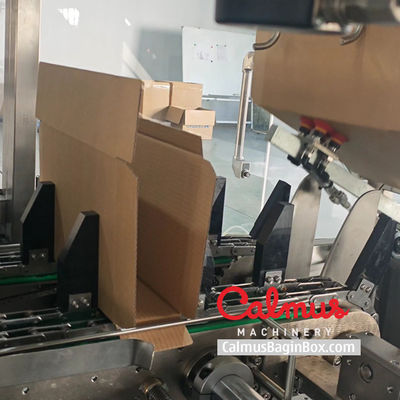

This sorter and wrap-around case packer system is designed for sorting pouches or doypacks (stand-up pouches) and packaging them with carton boxes. The case packer is a form-load-seal 3-in-1 monoblock cartoning machine, which integrates case forming, pouch loading, and case sealing into a single compact and efficient unit. It picks one-piece pre-creased cardboards from the storage tray, folds them to a U shape, conveys the folded carton blanks to the pouch loading station. The pouch sorter consists of a buffering belt conveyor, acceleration belt conveyor, a dual servo sorter, a servo side pusher, a buffering storage unit and an electrical controller. It organizes pouches to rows, one at a time, arranges them with interlayer partition boards if multiple rows in a case are required, delivers them to the loading funnel, insert the pouches into a formed case. Then, the loaded case is conveyed to the next stations to be closed at the top and sealed at the minor flaps with hot melt adhesive.
The pouch sorter organizes products seamlessly, ensuring a smooth and efficient workflow. It is designed to handle pouches up to 1 liter or 1 kilogram with precision, minimizing errors and enhancing output. The pouch case packer automates the processes of case forming, pouch loading, and case sealing, ensuring consistent and reliable packing. Together, these systems enhance productivity and reduce operational costs, empowering your business to thrive in a fast-paced environment.
Specifications:
Applicable products: pouches or doypacks up to 1 liter or kilogram
Functions: sorting pouches, forming cases, loading pouches, and sealing cases
Sorting capacity: 140-160 pouches per minute
Case packing capacity: 11-12 cases/min (12 pouches/row x 1 row per case)
Compressed air: 6-8 bar
Power consumption: 8 kW
Contact us today for a customized case packing system for your pouches.
Download our BROCHURE: Pouch Sorting and Case Packing Solutions.
