90BPH 5 Gallon PET Bottle Blow Molding Machine 19L 20L Plastic Bottle Making Machine

Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry. Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry. We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (bib) filling, bottle blow molding machines and other supporting equipment.

IMPORTANT:
Please inform in your inquiry of the BOTTLE SIZE and HOW MANY BOTTLES per hour you want to make, otherwise we can not ensure a quick response to you.

Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

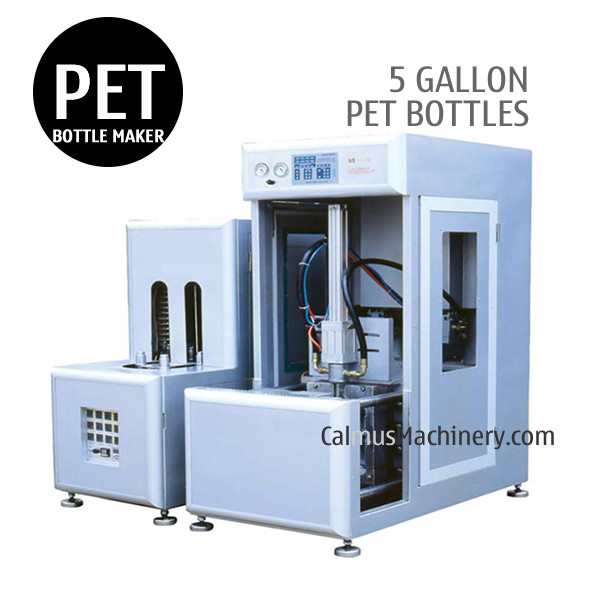

Semi-automatic 5 Gallon PET Bottle Blow Molding Machine | 19L 20L PET Bottle Making Machine

Feed material: PET Preforms
Bottle volume: 3 or 5 gallon
Production capacity: 90 pcs/hour (5 gallon)

Technical Data:
Max bottle length: 450mm
Max bottle diameter: 350mm
Max mould plate dimensions; 520x600mm
Max mould thickness: 400mm
Clamping force: 300KN
Mould opening stroke (adjustable): 300mm
Power: 30KW
Main body dimensions: 2.05x0.95x2.14m
