1200BPH 5 or 3 Gallon Bottled Water Plant Equipment Water Bottling Machine

1200BPH 5 or 3 Gallon Bottled Water Plant Equipment Water Bottling Machine


Product Details:

Place of Origin: China
Brand Name: Calmus
Certification: CE
Model Number: B5G-1200BPH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD40000-60000/Set
Packaging Details: Packed with plywood
Delivery Time: 20 days
Supply Ability: 20 Sets/Quarter
Contact Now
Detailed Product Description
Process: Filling Machine Processing Types: Water

Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include commercial filtration systems, bottle filling machines, bag-in-box filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water, beverage and food processing industry. We have helped many foreign customers build their own water plants by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other assistant equipment. Fore more information, please visit



Please inform in your inquiry WHETHER what you plan to fill are 5 gallons bottles and HOW MANY BOTTLES per hour you need to fill, otherwise we can not ensure a quick response to you.

Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

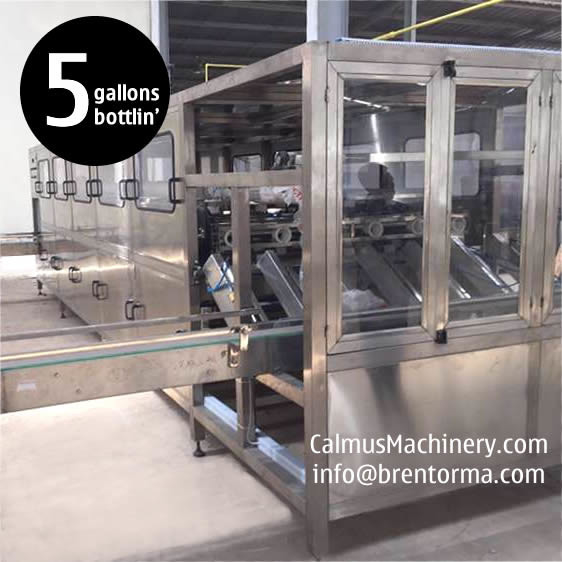

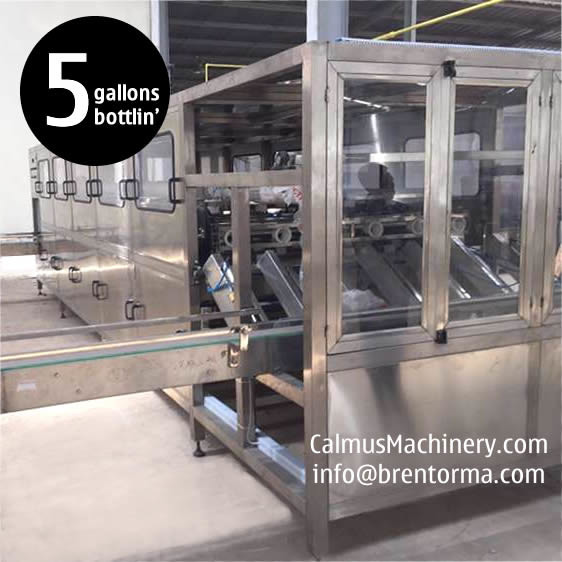

Automatic 5 or 3 Gallons Bottled Water Plant Equipment | Water Bottling Machine

Process: bottle rinsing + filling + capping (3-in-1 style)

The machine includes 4 main parts:
1. Bottle rinsing part
Rinsing bottles inside with sterilizing liquid, germless water and pure water.
2. Filling part
Fully-automatic filling pure water into bottles, controlled by PLC.
3. Capping
Fully-automatic covering and pressing caps on bottles.
4. PLC


Input watt: 13.5kw
Bottle spec.: 270x490x56(diameter) mm
230x460x56(diameter) mm
Bottle volume: 5 or 3 gallons
Cap spec.: 58(diameter)x40mm
Bottle rinsing capacity: 1200 bottles/hour
Filling capacity: 1200 bottles/hour
Rinsing section: 3,725x2,060x2,300mm
Filling section: 2,000x1,900x2,850mm
N.W.: 1,800kg
