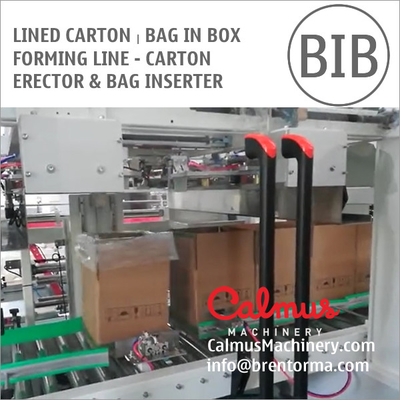

Lined Carton Forming Line - Carton Erector and Poly Bag Inserter
This Lined Carton or Bag in Box Forming Line erects cartons and seals bottoms, inserts poly bags in cartons by one each from a roll stock film, opens and cuffs the bag over the carton flaps, blow air to expand the bags to fit on the internal wall of cartons better to form lined cartons ready for filling products. This line includes a carton erector and a poly bag inserter (also called carton lining machine).
1. Carton Erector
Also called case former. It erects cartons, folds and seals bottoms with tape or hot-melt glue.
Specifications:
Erecting type: vertical or horizontal.
Sealing media: tape
Erecting capacity: max. 10 cartons/min or 25 cartons/min (depends on the carton size)
Applicable carton dimensions: 410mm<L+W<910mm, W180-390mm, 620mm>W/2+H>310mm
Applicable tape width: 4.8-7.2cm
Power supply: single phase, 400 W/1.5kW
Compressed air: 6 bar
Carton storage: 50 pcs (depends on the thickness of fold-flat carton)
2. Poly Bag Inserter
Also called Carton Lining Machine or Liner Placer. This poly bag inserter inserts a poly bag in a box from a roll stock film, open and cuff the bag over the carton flaps, blow air to expand the bag to fit on the internal wall of carton better.
The lining machine reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.
Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dims: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)
We are also able to manufacture high-speed carton lining machines with 12 cartons/minute.
