|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Packed with Plywood|
|Delivery Time:||45 Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 Sets/Quarter|
|Usage:||Lining Cases With Polybags||Feed:||Roll Stock Film|
|Functions:||Making Inserting And Extending Bag In Case|

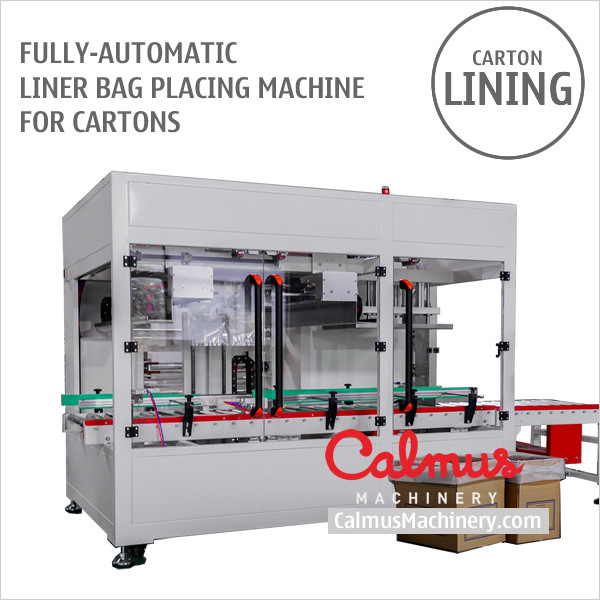

Case Liner Polybag Inserting Machine for Bulk Box Packaging
Bag inserting machine for making and inserting case liners in boxes by one each. This China-made fully-automatic poly bag inserter cuts and seals film as a bag from a roll stock, inserts it in a formed case, opens and cuffs the bag over the case tops, blows air to extend the liner to fit the internal wall of box better. The liner bag inserting machine reduces labor and material costs, is simple to operate and easy to adjust.
This is an ideal machine for bulk box packaging of backery rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this liner placer works with a case former as the combination can be an automatic lined case forming line.
Making and inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable case dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)
We are also able to manufacture high-speed case liner placing machine with up to 30 cartons/minute.
