Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line

Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line

    • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line
    • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line
    • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line
    • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line
    • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line
  • Fully-automatic FFP2 Cup Respirator Mask Making Machine Production Line

    Product Details:

    Place of Origin: China
    Brand Name: Calmus
    Certification: CE
    Model Number: CM95CA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Packed with Plywood
    Delivery Time: 30 Days
    Payment Terms: T/T
    Supply Ability: 10 Sets per Month
    Contact Now
    Detailed Product Description
    Usage: Producing Cup Shaped Respirator Masks

    Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry. Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry. We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (BIB) filling machines, bottle blow molding machines and other supporting equipment. For more information, please visit www.CalmusMachinery.com

    IMPORTANT:
    Please DIRECTLY WRITE TO OUR EMAIL ADDRESS on the picture or LEAVE YOUR EMAIL ADDRESS in your inquiry, otherwise we can not reply you due to the website regulations.

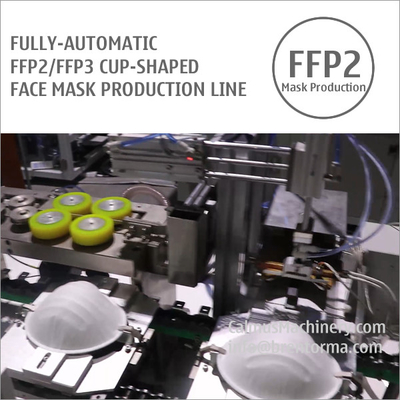

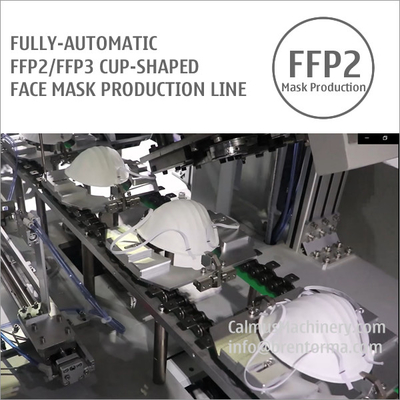

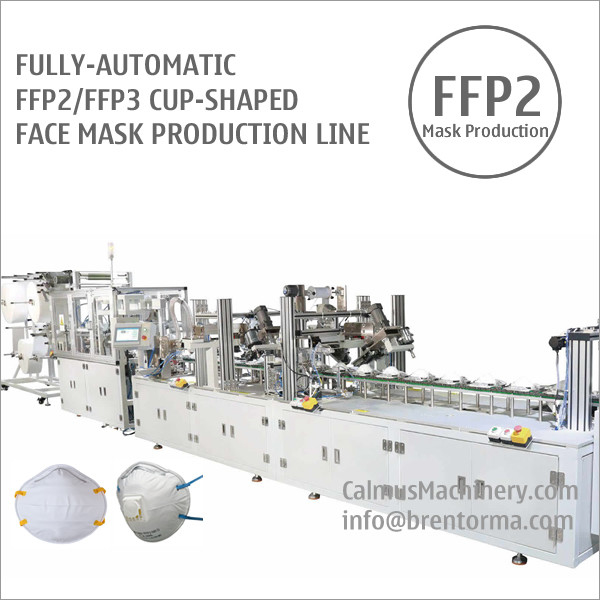

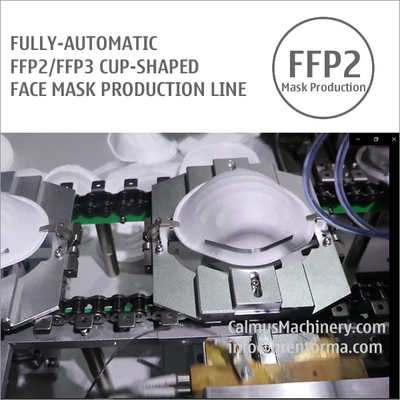

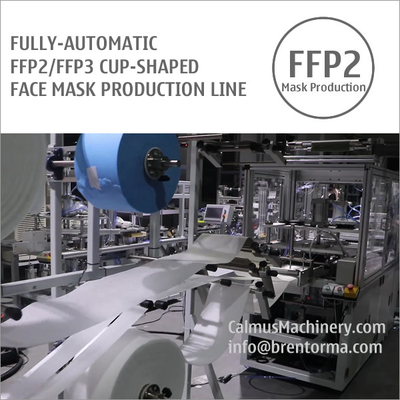

    Fully-automatic FFP2 Cup-Shaped Mask Making Machine | Valveless or Valved Respirtor Production Line



    This production line for producing FFP2 cup-shaped face masks and it makes 3-to-6-ply valveless or valved respirators/masks automatically by the following procedures.
    1) Unwinding and feeding non-woven fabrics;
    2) Forming and cutting cups;
    3) Feeding and mounting nose clips;
    4) Feeding and stapling headloops.
    5) Cutting holes for exhalation valves (optional);
    6) Fitting and welding exhalation valves (optional).

    The above process is done automatically and continuously by PLC.



    Features:
    1) Fully-automatic.
    2) Stick nose clips externally at a constant temperature. No damage and strong fitting.
    3) Earloops are installed by stapling automatically. Adjustable on length, reliable and
    strong-tension.
    4) Easy to use. The touch-screen control system makes operation easy.
    5) Alarm when the fed material breaks or is in short.



    Specifications:
    Power supply: 14.5 kW
    Capacity: 15-25 pcs/min
    Weight: 4,650 kg
    Dimensions: 12,000(L)*2,200(W)* 1,500 (H)mm
    Site level: class 100,000 cleanroom
    Compressed air: 6 bar, pre-filtered, 23L/min
