Carton Box Liner Bag Placing Machine

Carton Box Liner Bag Placing Machine

    • Carton Box Liner Bag Placing Machine
    • Carton Box Liner Bag Placing Machine
  • Carton Box Liner Bag Placing Machine

    Product Details:

    Place of Origin: China
    Brand Name: Calmus
    Certification: CE
    Model Number: CL71

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Packed with Plywood
    Delivery Time: 45 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 Sets/Quarter
    Contact Now
    Detailed Product Description
    Usage: Placing Carton Liner In Box Feed: Roll Stock Film
    Functions: Making Inserting And Extending Bag In Box

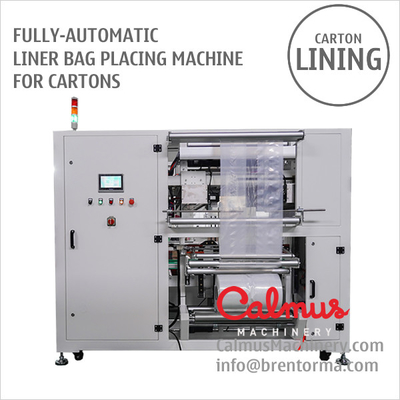

    Fully-automatic Carton Liner Placing Machine


    Carton liner placing machine for inserting bags in boxes by one each. This China-made fully-automatic liner placer cuts and seals film as a bag from a roll stock, inserts it in an erected carton, opens and cuffs the bag over the carton top flaps, blows air to extend the bag to fit the internal wall of box better. The liner bag placing machine reduces labor and material costs, is simple to operate and easy to adjust.


    This is an ideal machine for bulk box packaging of bread rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this liner placer works with a carton erector as the combination can be an automatic lined carton forming line.


    Inserting capacity: 6-7 cartons/min
    Film width: 460-840mm
    Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
    Power supply: 3 phase, 4.5 kW
    Compressed air: 6 bar
    Air consumption: 100 NL/min
    Machine dimensions: L3322*W2177*H2350mm (for reference only)


    We are also able to manufacture high-speed carton liner placing machine with 12 cartons/minute.
