Home ProductsFeatured Packaging Machines

Polybag Maker Bag Inserter Machine from Roll Stock Film

Polybag Maker Bag Inserter Machine from Roll Stock Film

    • Polybag Maker Bag Inserter Machine from Roll Stock Film
    • Polybag Maker Bag Inserter Machine from Roll Stock Film
    • Polybag Maker Bag Inserter Machine from Roll Stock Film
  • Polybag Maker Bag Inserter Machine from Roll Stock Film

    Product Details:

    Place of Origin: China
    Brand Name: Calmus
    Certification: CE
    Model Number: CL71

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Packaging Details: Packed with Plywood
    Delivery Time: 45 Days
    Payment Terms: T/T, L/C
    Supply Ability: 20 Sets/Quarter
    Contact Now
    Detailed Product Description
    Usage: Lining Cases With Polybags Feed: Roll Stock Film
    Functions: Making Inserting And Extending Bag In Case

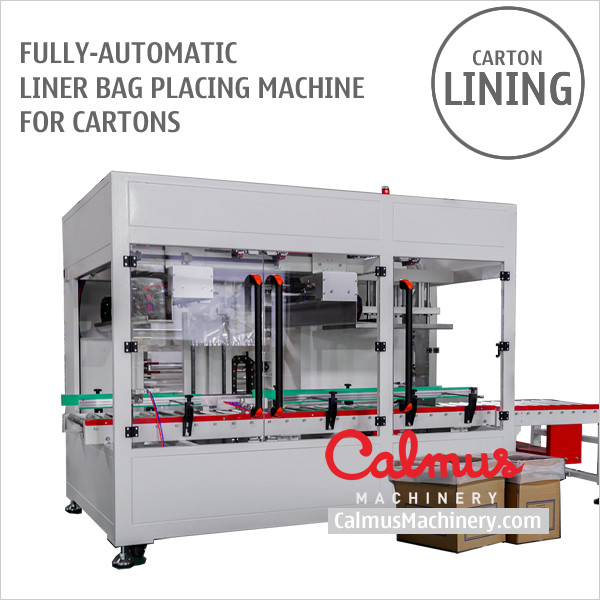

    Polybag Maker Bag Inserter from Roll Stock Film



    Bag inserter machine for making and inserting bags in boxes by one each. This China-made fully-automatic poly bag inserter cuts and seals film as a bag from a roll stock, inserts it in a formed case, opens and cuffs the bag over the case tops, blows air to extend the liner to fit the internal wall of box better. The liner bag inserting machine reduces labor and material costs, is simple to operate and easy to adjust.



    This is an ideal machine for bulk box packaging of backery rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this liner placer works with a case former as the combination can be an automatic lined case forming line.



    Specifications:
    Making and inserting capacity: 6-7 cartons/min
    Film width: 460-840mm
    Applicable case dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
    Power supply: 3 phase, 4.5 kW
    Compressed air: 6 bar
    Air consumption: 100 NL/min
    Machine dimensions: L3322*W2177*H2350mm (for reference only)

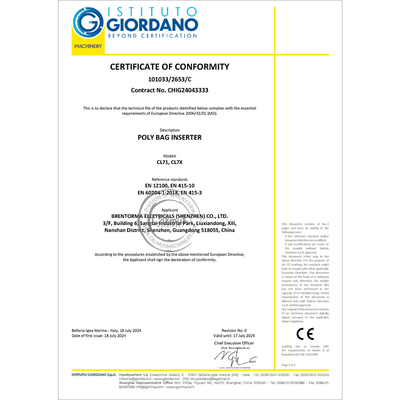

    CE certified under Directive 2006/42/EC Machinery.

    Download the BROCHURE.



    We also manufacture high-speed case liner placing machines capable of handling up to 13 cartons per minute.
